Street
New
This is an image carousel with thumbnail navigation. Select any thumbnail to view an enlarged version in a gallery modal. In the gallery, use the Next and Previous buttons to navigate between images, or close the modal to return to the thumbnails.

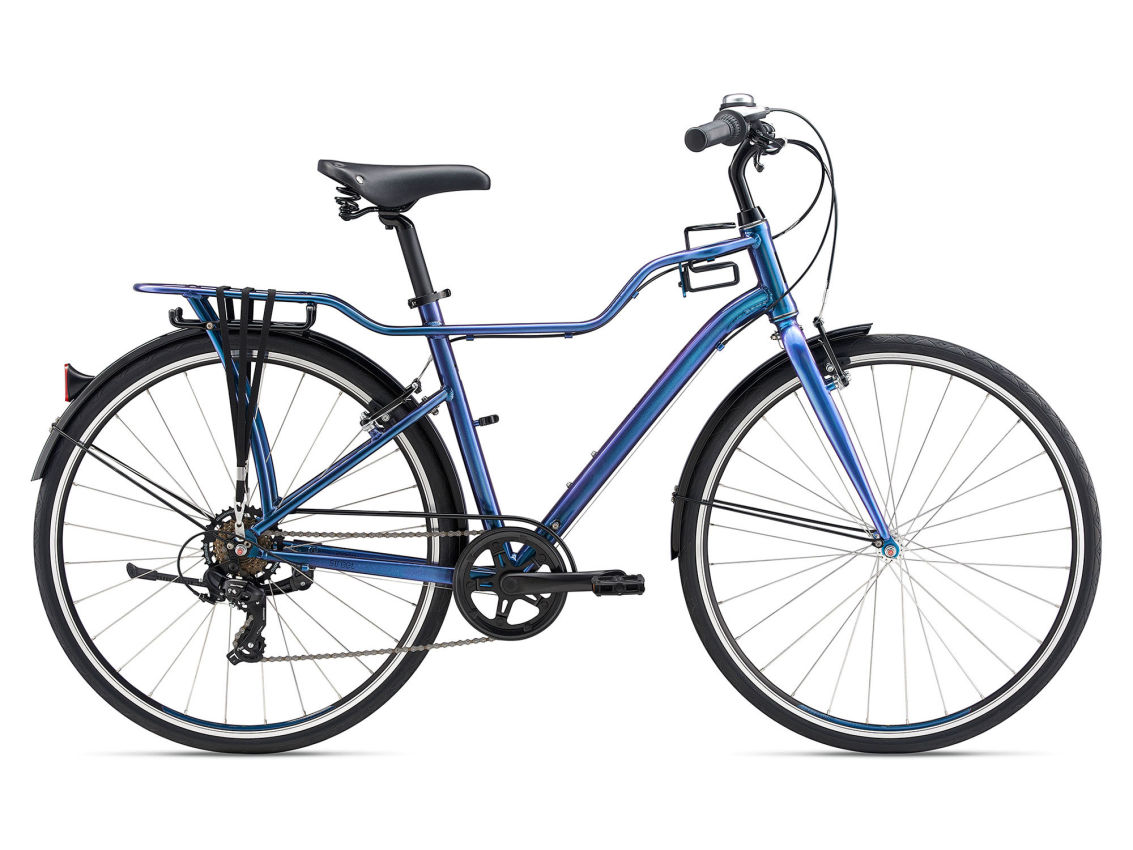

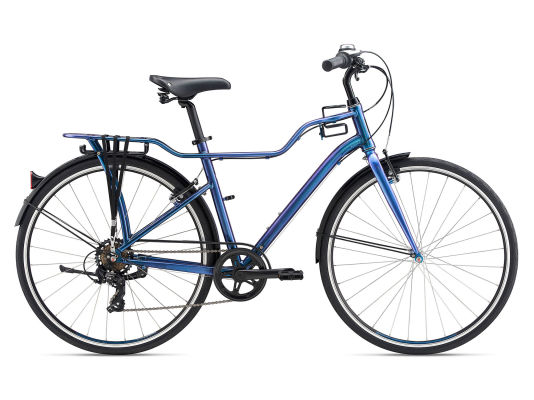

Street Mid Step
Similar Products
Cup Holder
Integrated frame features include built-in cup holder.
Rear Rack
Integrated frame features include the rear rack to carry cargo
U-Lock Fit
Integrated frame features include built-in U-lock fit.
7-Speed
Shimano 7-speed drivetrain.
Geometry
| Frame Size | Rider Height | Standover Height |
|---|---|---|
| S | 155 cm to 170 cm | 66 cm |
| M | 165 cm to 180 cm | 75 cm |
| L | 175 cm to 190 cm | 77 cm |
| S | M | L | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 43016.9 | 48018.9 | 50019.7 |
| B | Seat Tube Angle (degrees) | 73.5° | 73.0° | 72.0° |
| C | Top Tube Length (mm) (inch) | 55021.7 | 57022.4 | 59023.2 |
| D | Head Tube Length (mm) (inch) | 1405.5 | 1505.9 | 1666.5 |
| E | Head Tube Angle (degrees) | 71.0° | 71.0° | 71.0° |
| F | Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 |
| H | Wheelbase (mm) (inch) | 103540.7 | 105041.3 | 105941.7 |
| I | Chain Stay Length (mm) (inch) | 43517.1 | 43517.1 | 43517.1 |
| J | Bottom Bracket Drop (mm) (inch) | 602.4 | 602.4 | 602.4 |
| K | Stack (mm) (inch) | 56522.2 | 57522.6 | 59023.2 |
| L | Reach (mm) (inch) | 38315.1 | 39415.5 | 39815.7 |
| M | Stand Over Height (mm) (inch) | 65925.9 | 74629.4 | 76330 |
| N | Handlebar Width (mm) (inch) | 60023.6 | 60023.6 | 60023.6 |
| O | Stem Length (mm) (inch) | 803.1 | 1003.9 | 1003.9 |
| Q | Wheel Size | 700C | 700C | 700C |
The specifications, colors, and availability of the products can be subjects to alter without prior notification. For availability and prices, please contact the retailers in your city / country.
