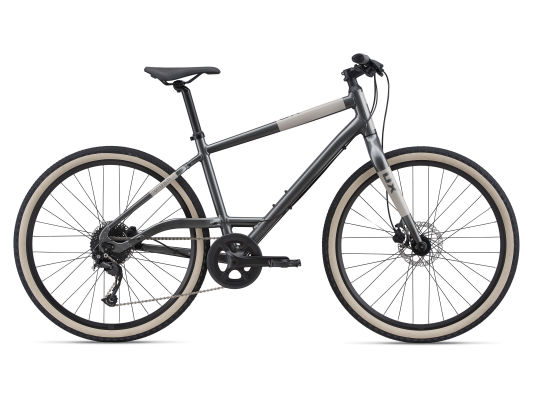

UX 9S

$700

Similar Products

:

UX 3S

$530

RULE YOUR CITY

From rough city streets to park pathsand beyond, the versatile UX hybrid commuter bike is built for adventure. Ride through bumpy back alleys or take a shortcut through the park, it’s all about putting some excitement into your daily routine. With its powerful disc brakes, and confident 27.5 wheels with wide 50mm tires, this hybrid bike can handle rough roads and varied terrain.

Premium Lightweight Alloy Frame
Premium Lightweight Alloy Frame
Made with ALUXX aluminum for confident, versatile handling on smooth or rough roads.
Flat Handlebar
Flat Handlebar
Mountain bike style handlebar gives added control on rough roads or dirt.
Elevated Chainstay
Elevated Chainstay
Raised stay on the drive-side for easier maintenance and access to the chain.
Disc Brakes
Disc Brakes
Powerful brakes for added control in variable road and weather conditions.
Grippy Tires
Grippy Tires
High-volume 50mm tires provide smooth, confident handling.
Reflective Decal
Reflective Decal
For added visibility in low-light conditions.
Specs

Specifications

  • Frame
    ALUXX-Grade Aluminum
  • Fork
    ALUXX-Grade fork
  • Handlebar
    Alloy riser bar,31.8
  • Grips
    Momentum Ergo
  • Stem
    Alloy forged 31.8
  • Seatpost
    Alloy 30.9
  • Saddle
    Selle Royal VIVO
  • Pedals
    Platform plus
  • Rear Derailleur
    Shimano Alivio RD-M3100
  • Brakes
    Tektro M275
  • Brake Levers
    Tektro M275
  • Cassette
    Shimano HG200, 11x36
  • Chain
    KMC X9 with Missing Link
  • Crankset
    Forged alloy, 40t w/chainguard
  • Bottom Bracket
    Sealed Cartridge
  • Rims
    Double Wall, 6061 Aluminum
  • Hubs
    Alloy, loose ball bearing, , 32h
  • Tires
    CST 1899 27.5x 2.1"
  • Weight
    12.46 kg (27 lb 8oz) - Size (M)

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Frame SizeRider HeightStandover Height
S5’1” to 5’7”30.7"
M5’5” to 5’11”31.9"
L5’9” to 6’3”32.7"

Momentum Framesize

  SML
ASeat Tube Length (mm) (inch)40015.745017.750019.7
BSeat Tube Angle (degrees)73.0°73.0°73.0°
CTop Tube Length (mm) (inch)57022.459023.261024
DHead Tube Length (mm) (inch)1405.51606.31807.1
EHead Tube Angle (degrees)71.0°71.0°71.0°
FFork Rake (mm) (inch)451.8451.8451.8
HWheelbase (mm) (inch)106441.9108542.7110643.5
IChain Stay Length (mm) (inch)44517.544517.544517.5
JBottom Bracket Drop (mm) (inch)502502502
KStack (mm) (inch)57422.659323.361224.1
LReach (mm) (inch)39415.540916.142316.7
MStand Over Height (mm) (inch)77830.680331.682832.6
NHandlebar Width (mm) (inch)64025.264025.269027.2
OStem Length (mm) (inch)702.8702.8903.5
PCrank Length (mm) (inch)1706.71706.71706.7
QWheel Size 27.527.527.5
bike diagram
