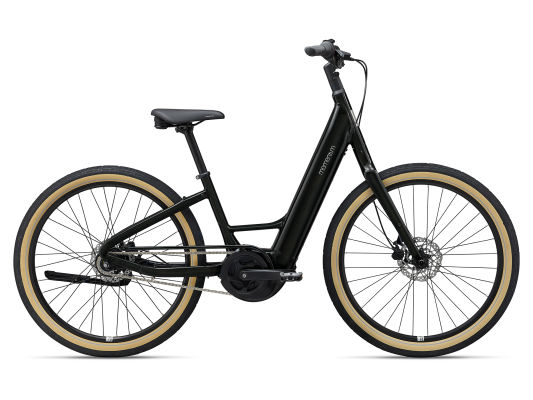

Vida E+ LDS

$2,500

PLEASE NOTE: We cannot guarantee delivery by 12/24/24 on orders placed after 12/13/24. Orders may be delayed due to holiday schedules and shipping delays. Our support team will be unavailable starting 12/21/24-01/01/25. Any inquiries received during this time frame will be addressed starting 01/02/25, we apologize for any inconvenience.

Specs

Specifications

  • Motor
    SyncDrive Life, 60Nm, Powered by Yamaha, PedalPlus 6-sensor technology, Class 1, Max Assist Speed: 20MPH
  • Controller
    RideControl One ANT+, Smart Assist automatic mode, 5 manual support levels
  • Battery
    EnergyPak 500Wh Compact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
  • Charger
    Giant EnergyPak 6A smart charger, 60% in 1:25h
  • Connectivity
    "Giant RideControl App enabled ANT+ wireless display signal with e-bike profile"
  • Sizes
    S,M,L
  • Colors
    Panther
  • Frame
    ALUXX aluminium, Low Step
  • Fork
    ALUXX aluminium
  • Handlebar
    TR49A-00S1, aluminium 20D sweep back, rise 50 mm, width: 720mm
  • Grips
    Momentum dual compound
  • Stem
    TDS-807-8 FOV 31.8
  • Seatpost
    Aluminium 30.9mm
  • Saddle
    Selle Royal Essenza Relax A0A7
  • Pedals
    Anti-slip
  • Shifters
    Shimano Nexus 7sp RevoShift
  • Brakes
    Tektro HD-M275, hydraulic disc, 160mm [F/R]
  • Brake Levers
    Tektro HD-M275
  • Cassette
    18T
  • Chain
    KMC Z1eHX NP/NP, alloy w/ Chainguard
  • Crankset
    Steel 38T chain ring, 160mm
  • Rims
    Momentum, 26 aluminum, e-bike optimized
  • Hubs
    Shimano TX505 [F] Nexus 7 [R]
  • Spokes
    Stainless steel
  • Tires
    CST Metropolitan Palm Bay 26x2.35"
  • Extras
    Direct Mount KSA18 Trekking Kickstand
  • Lighting
    Optional
  • Carrier
    Optional front and/or rear
  • Weight
    23.26kg (51lbs 05oz) - Size (S ) w/ kickstand

*All specifications and prices listed are subject to change without notice.
Actual weight may vary due to manufacturing tolerances, color variations, frame size and variability in production components.

Geometry

Frame SizeRider HeightStandover Height
S4’9” to 5’4”18.9"
M5’3” to 5’8”18.9"
L5’7” to 5’10”18.9"

Momentum Framesize

  SML
ASeat Tube Length (mm) (inch)3801543016.947518.7
BSeat Tube Angle (degrees)67.0°67.0°67.0°
CTop Tube Length (mm) (inch)60023.662024.464025.2
DHead Tube Length (mm) (inch)1907.52058.12108.3
EHead Tube Angle (degrees)69.0°69.0°69.0°
FFork Rake (mm) (inch)502502502
HWheelbase (mm) (inch)108942.9110843.6112844.4
IChain Stay Length (mm) (inch)48018.948018.948018.9
JBottom Bracket Drop (mm) (inch)451.8451.8451.8
KStack (mm) (inch)62524.663925.265325.7
LReach (mm) (inch)33513.234913.736314.3
MStand Over Height (mm) (inch)47318.647318.647318.6
NHandlebar Width (mm) (inch)72028.372028.372028.3
OStem Length (mm) (inch)401.6401.6602.4
PCrank Length (mm) (inch)1656.51656.51656.5
QWheel Size 262626
bike diagram
